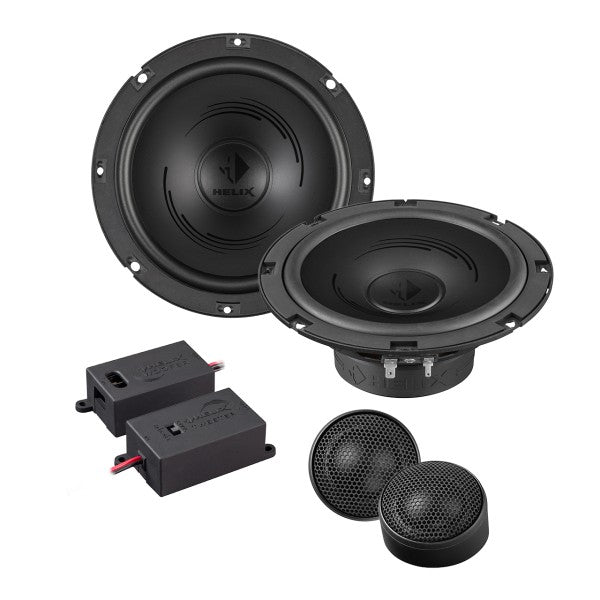

HELIX PF K165.2 - 6.5" 2-Way Component Speaker Set

Product details:

The HELIX PF K165.2 is the largest component set in the PURE F range, combining a 6.5-inch carbon-fibre-reinforced woofer with a 20mm silk-dome tweeter on a separate two-part crossover for cleaner separation and more installation flexibility than a coaxial. Both drivers run a 12dB crossover slope with built-in tweeter protection, and low-profile mounting keeps the kit fitting where factory space is tight.

Product specifications:

• Series: HELIX PURE F
• Speaker type: 2-Way / Component
• Configuration: Passive, two-part crossover
• Woofer size: 165mm | 6.5"
• Tweeter size: 20mm | 0.75"
• Power handling RMS: 60W RMS / 120W Max
• Sensitivity: 92.5 dB @ 2.83V/1m (woofer)
• Voice coil x impedance: 3Ω
• Frequency response: 55 Hz – 22,000 Hz (woofer)
• Crossover: 12dB slope on both drivers with tweeter protection
• Cone/tweeter material: Injected polypropylene woofer cone with embedded carbon fibers; silk dome tweeter with neodymium magnet

Dimensions: Woofer installation diameter 142mm (outer 165mm) / depth 61mm | Tweeter installation diameter 33.1mm (OE) / 36mm (flush), depth 9.8mm (OE) / 16.8mm (flush) / 11mm (angled)

Downloads: HELIX PF K165.2 - 6.5" 2-Way Component Speaker Set — official datasheet (PDF)
