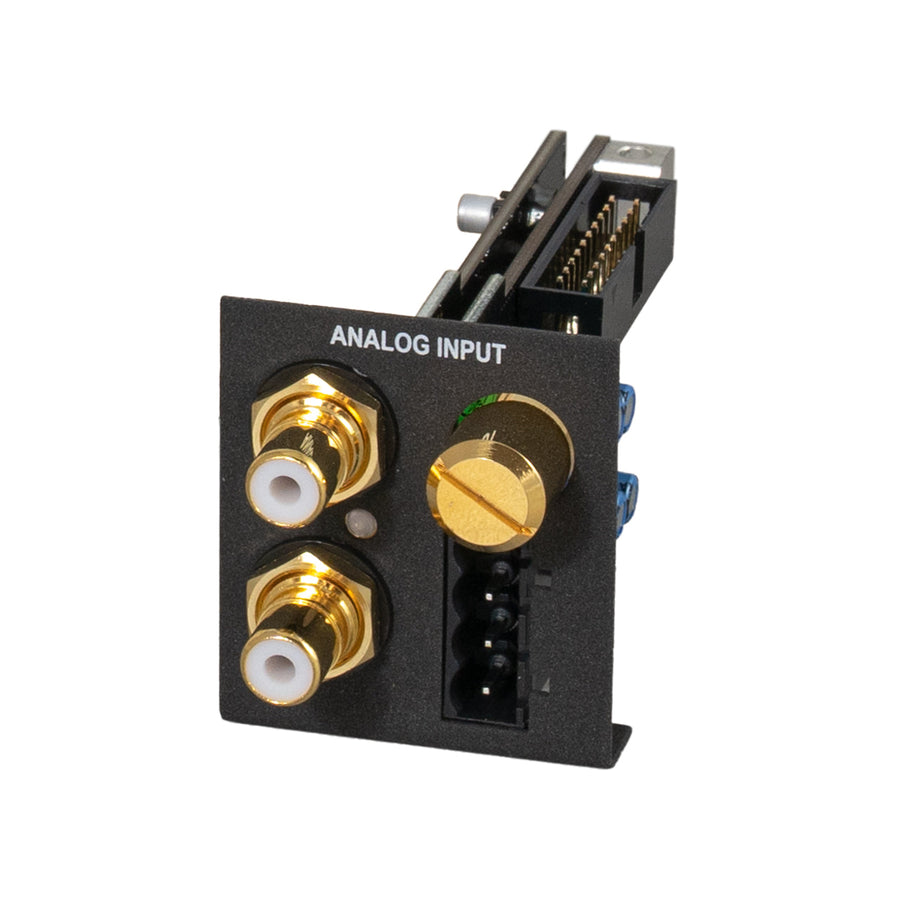

BRAX DSP Input Analog AKM - Upgrade Input Modul For BRAX DSP CORE

Product details:

The DSP Input Analog AKM is an analog input upgrade card for the BRAX DSP CORE, adding two further stereo inputs — switchable between RCA and high-level speaker connections — to the CORE's modular input bay. Where the base unit's built-in inputs cover the everyday cases, this card is for systems that need an extra analog source (a factory amp's high-level output, an aftermarket head unit, a second zone) converted with the same care as the rest of the signal chain: it's built around AKM's AK5572EN, a 32-bit Velvet Sound A/D converter, paired with a TI LME49720 dual op-amp. Like the other DSP CORE upgrade cards it's auto-detected by DSP PC-Tool once fitted, no manual configuration required.

Product specifications:

• Inputs: 2x stereo, switchable RCA or high-level
• RCA sensitivity: 1–8V, continuously adjustable
• High-level sensitivity: 3.5–30V, continuously adjustable
• Converter: AKM AK5572EN, 32-bit A/D, Velvet Sound
• Op-amp: TI LME49720 Dual High Performance
• Sampling rate: 192 kHz
• Frequency response: 10 Hz – 80 kHz
• Signal-to-noise ratio: 116 dB (A-weighted)
• THD: < -104 dB (0.0006%)
• Compatibility: Fits any BRAX DSP CORE input module slot; requires DSP PC-Tool v4.42a or later
• Order number: 12115
• Included: Upgrade module in wooden BRAX presentation box
