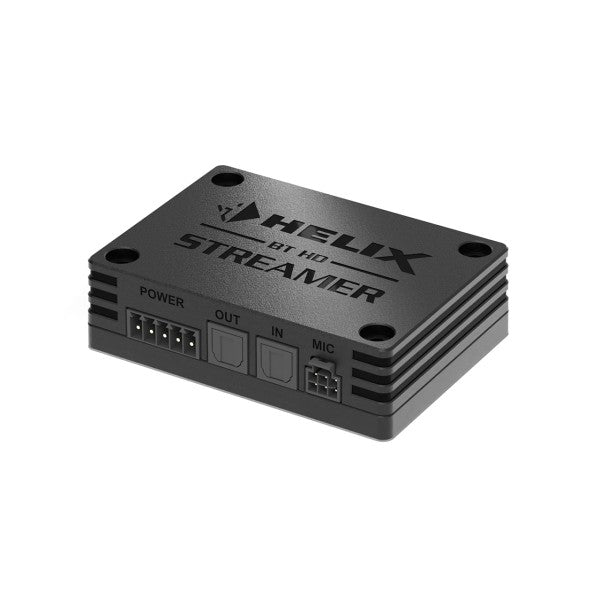

HELIX BT HD STREAMER - Multifunctional Audio Streaming Device

Product details:

The HELIX BT HD STREAMER is a stand-alone Bluetooth® retrofit for any DSP or DSP amplifier with an optical digital input — no HEC or Extension Card slot required. It streams wireless audio at up to 24-bit/48kHz using Qualcomm® aptX™ HD, with aptX™, AAC and SBC codec support for full cross-platform compatibility, and passes the signal straight through its optical SPDIF output for lossless digital processing. Add the HELIX BT HD Handsfree Microphone Kit for hands-free calling without touching your head unit.

If your DSP already has a HEC or Extension Card 2.0 slot, an internal Bluetooth card — the HELIX HEC BT HD or the Extension Card 2.0 BT HD (HELIX & MATCH) — is usually the tidier option. The BT HD STREAMER is for systems without a spare slot, or for adding Bluetooth to a DSP that doesn't support an extension card at all.

Product specifications:

• Bluetooth standard: 5.0 + EDR
• Codecs: aptX™ HD, aptX™, AAC, SBC
• Wireless range: Up to 10m
• Frequency range: 2402–2480 MHz
• Paired devices: Up to 8
• Audio input/output: Optical SPDIF (12–96kHz in; up to 96kHz/24-bit out)
• Operating voltage: 10.5–32V (6V min. for 5 seconds)
• Power consumption: 100mA max | ~3mA standby
• Remote output: 200mA max
• Order number: H424518

Downloads: HELIX BT HD STREAMER — official manual (PDF) | EU Declaration of Conformity (PDF)
