HELIX DIRECTOR Control Input - Display Remote Control for DSP/Amp With Control Input

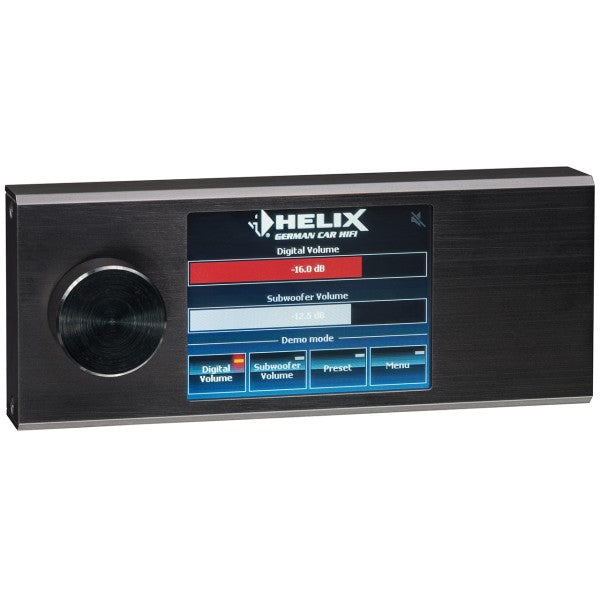

The HELIX DIRECTOR is a display remote control for BRAX, HELIX and MATCH DSP and amplifier devices, built around a 2.8" full-colour touchscreen in a solid aluminium housing with automatic dimming and a display that can be rotated up to 180° to suit the install. From the screen you can select sources, adjust volume across all channels including the subwoofer, control playback on an installed HEC Bluetooth module, and switch between the DSP's stored sound-setup memory (up to 20 configurations); it also gives USB access to the DSP for on-the-bench configuration. This version connects via the Control Input port and, with an optional SCP-to-Control Input adaptor, can also be used on newer devices fitted with a Smart Control Port; for devices that use SCP natively, see the HELIX DIRECTOR SCP. For flush mounting, pair it with the HELIX DMP panel.

Product specifications:

• Display: 2.8" (7 cm) full-colour touchscreen, auto-dimming, rotatable up to 180°
• Housing: Solid aluminium block
• Processor: ARM processor
• Dimensions: 53.5 x 135 x 18 mm
• Cable length: 5.2 m (17 ft)
• Connector type: Control Input (SCP-compatible via optional adaptor)
• Sound-setup memory: Up to 20 stored configurations
• Compatibility: BRAX, HELIX and MATCH devices supported by DSP PC-Tool v3 and higher
• Order number: H424495

Downloads: DIRECTOR — official user interface manual (PDF)
