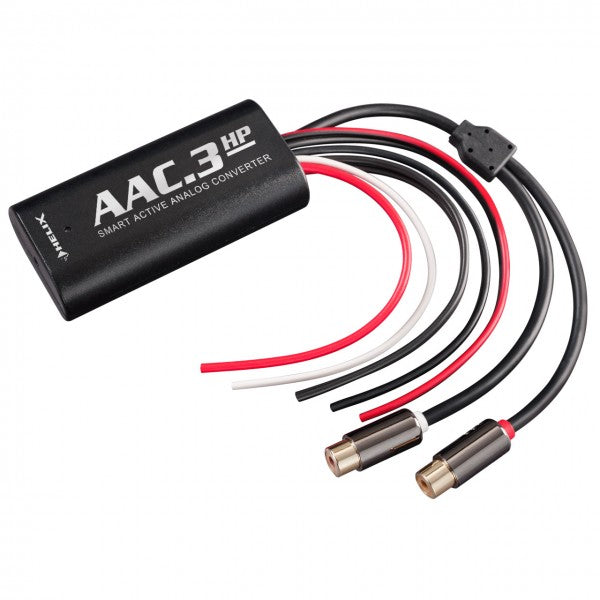

HELIX AAC.3 HP - High To Low Voltage Converter

The HELIX AAC.3 HP is a high-to-low voltage converter that taps a genuine speaker-level signal from a factory amplifier's output and converts it into a clean, adjustable preamp-level signal for an aftermarket amplifier or DSP — letting you add proper aftermarket power to an OEM system without replacing the factory head unit or amp. Its ADEP.3P circuit bypasses the factory amplifier's speaker-load diagnostics so the OEM system doesn't flag a fault when its output is tapped, while also cutting the current the factory amp has to deliver by up to 70%, which keeps heat and load down at the source. The "HP" (High Power) rating reflects its input handling — up to 25V / 155W at 4Ω, well above a standard high-low converter — which is what separates it from the standard HELIX AAC.3, rated to 16V, and makes it the one to reach for on higher-powered factory systems.

Product specifications:

• Maximum speaker input: 25V (155W @ 4Ω)
• Input impedance: 13 Ω
• Maximum output level: 4.0V
• Frequency response: 18 Hz – 80 kHz
• Operating voltage: 7–18V
• Remote output current: 200 mA max
• Turn-on: Double Activation Circuit — DC-offset or adjustable signal detection
• Power Save Mode: Remote output switches off after 2 minutes without audio
• Dimensions: 77 x 37 x 20 mm
• Outputs: Gold-plated RCA
• Made in: Germany
