HELIX CONDUCTOR Control Input - Programmable LED Remote Control For MATCH & HELIX With Control Input Port

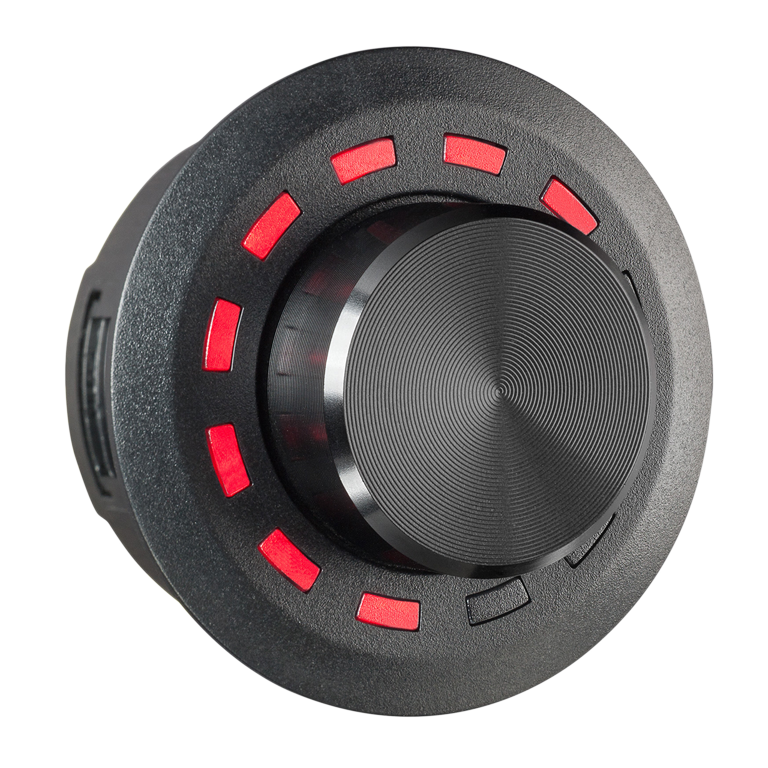

The HELIX CONDUCTOR is a programmable remote for BRAX, HELIX and MATCH DSP and amplifier devices, built around a single rotary encoder ringed by 12 RGB LEDs. Rather than one fixed function, it steps between up to four independently configured volume controls (master, digital/HEC, auxiliary and subwoofer), switches between up to 10 stored sound-setup presets, and can control playback on an installed Bluetooth extension card — all set up through DSP PC-Tool software, with LED colour and dimming configurable to suit the vehicle interior. This version connects via the Control Input port; for devices with a Smart Control Port, see the HELIX CONDUCTOR SCP, or for the premium aluminium-bodied version, the HELIX CONDUCTOR PRO.

Product specifications:

• Control element: Rotary encoder with 12 RGB LEDs (16 million colours)
• Housing: ABS with machined aluminium knob
• Dimensions: Ø 46 x 28.7 mm; 17 mm installation depth; Ø 40 mm panel cutout required
• Connector type: Control Input, NanoFit — no separate power supply needed
• Cable length: 5 m total
• Volume control: Up to 4 independent volumes; 60 dB, 24 dB or 12 dB range options; 1 dB or 0.5 dB step sizes
• Presets: Up to 10 sound-setup presets
• Processor: 48 MHz ARM
• Compatibility: BRAX, HELIX and MATCH DSP/amp devices fitted with a Control Input port

Downloads: CONDUCTOR — official user manual (PDF)
